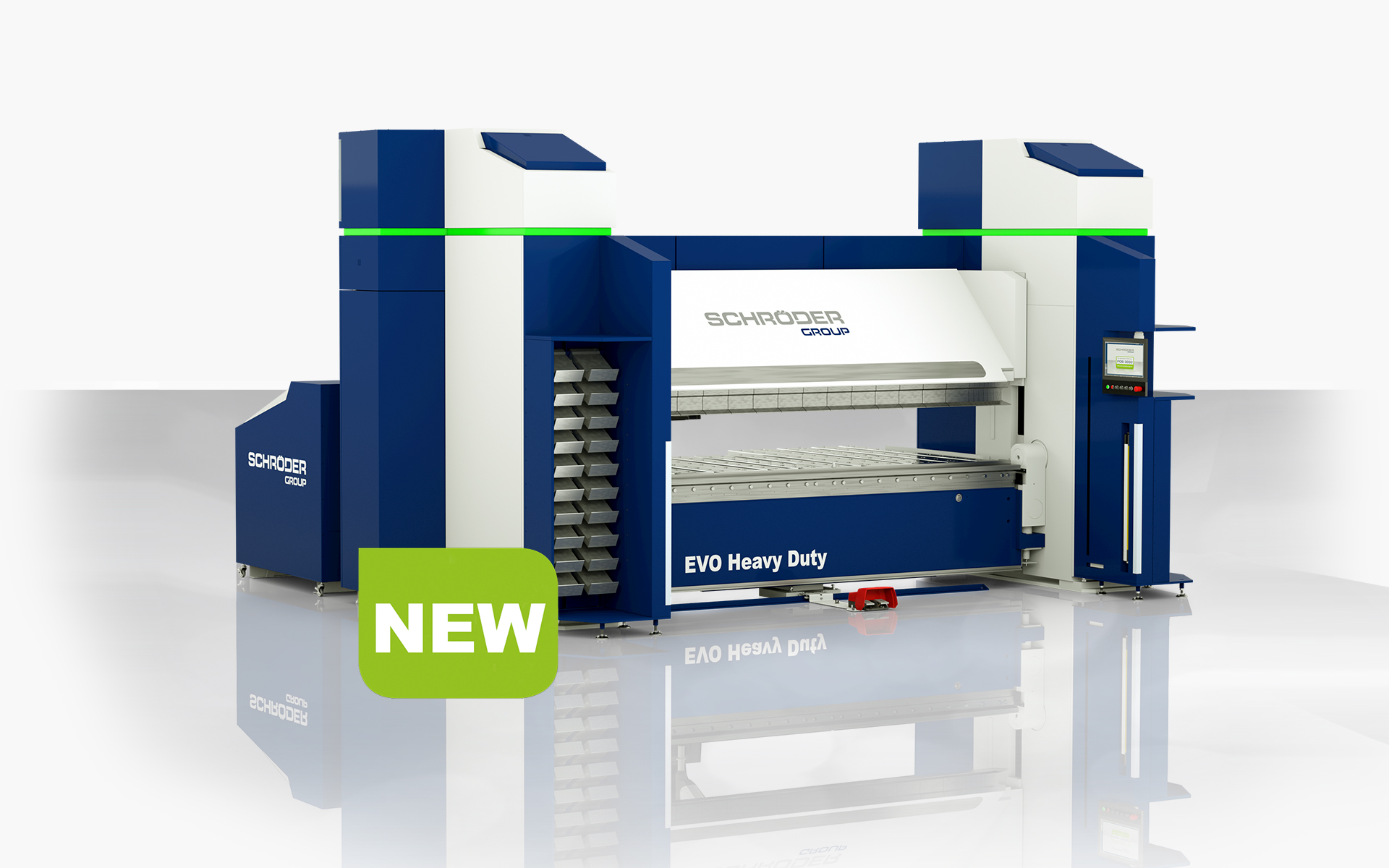

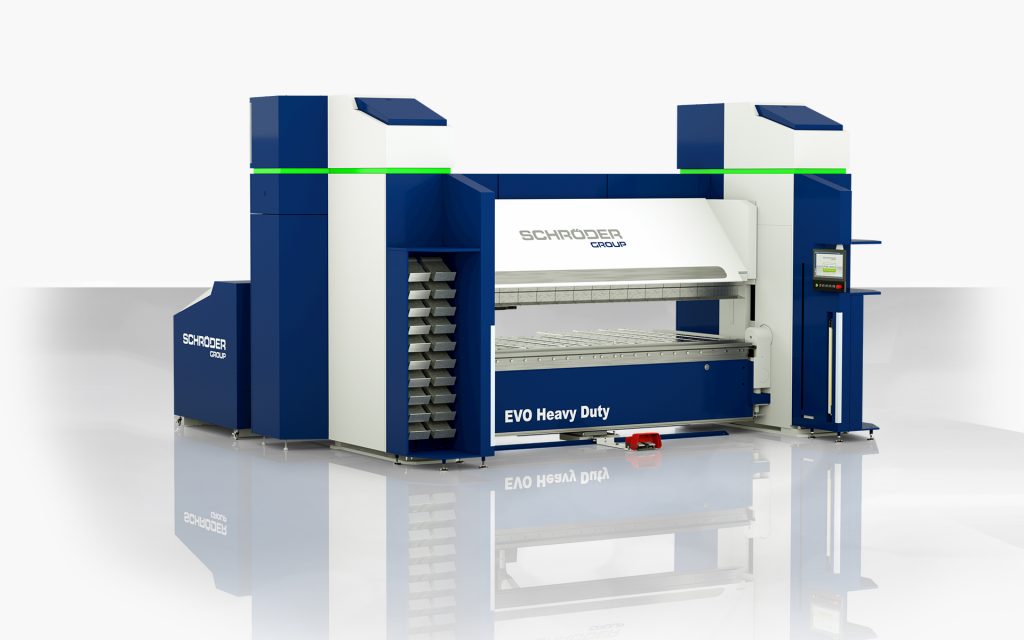

EVO Heavy Duty
Overview
The sheet metal folder EVO Heavy Duty is our strongest folding machine that is able to bend up to 16 mm thick sheets over a working length of 3240 mm. We set standards in industrial folding and combine maximum precision with the highest possible bending performance.
Details
- Software control and options:
- Graphic control POS 2000 Professional
- Monitor in front of the machine, integrated into the casing – rotatable
- Radius function
- PC Version (external programming), 1. licence
- Remote maintenance (connection via RJ45 network cable to be provided by customer)
- Gauge:
- Motorized back gauge MAH 25R, working range 30 – 1600 mm, motorized adjustment via ball screws
- sheet support table with balls
- Clamping beam:
- Stroke 500 mm
- Geometry 45°
- Tool clamping WZS 2500 with hydraulic clamping
- Folding beam:
- Max. bending angle: 180°
- Tool clamping WZS 1000 with mechanic clamping
- Motorized folding beam adjustment 60 mm
- Motorized crowning device
- Bottom beam:
- Motorized bottom beam adjustment 60 mm
- Tool clamping WZS 17000 with mechanic clamping
- Work safety:
- Foot switch movable on guide rail
- Safety enclosure on the left and right of the machine with two shelves each
- Werkzeuge:
- Bottom beam blade without finger grooves (Min. gauge dimension 120 mm) or with finger grooves (Min. gauge dimension 30 mm), tools hardened, nitrate
- Folding blade 2-piece, h = 110 mm, width = 18 mm, and reinforced folding blade, 2-piece h = 110 mm, width = 112 mm
- All tools ca. 1100 N/mm², inductive hardened, phosphated
- Standard machine without clamping beam tools
- Others:
- Motor drive 37 kW
- Anchor plates incl. dowels
