Modular

Overview

Overview

The hand-operated long folding machine is a combinable, modular folding machine from Schröder: In a few simple steps two or more folding machines can be connected to one long folding machine.

Brochures:
deutsch
english

Details

Details

  • 2000 mm or 3000 mm working length per machine, suitable for line-up
  • Machine movable on 4 or 6 steering castors, lockable
  • Angle indicator, one side, standard right
  • Inserting depth 670 mm over complete machine length
  • Free distance for 1,000 mm coil width
  • Increase of capacity and extended inserting depth on request

Brochures:
deutsch
english

Technical Data

Technical Data

type capacity working length clamping beam stroke L x W x H weight
[mm] [mm] [mm] [mm] [kg]

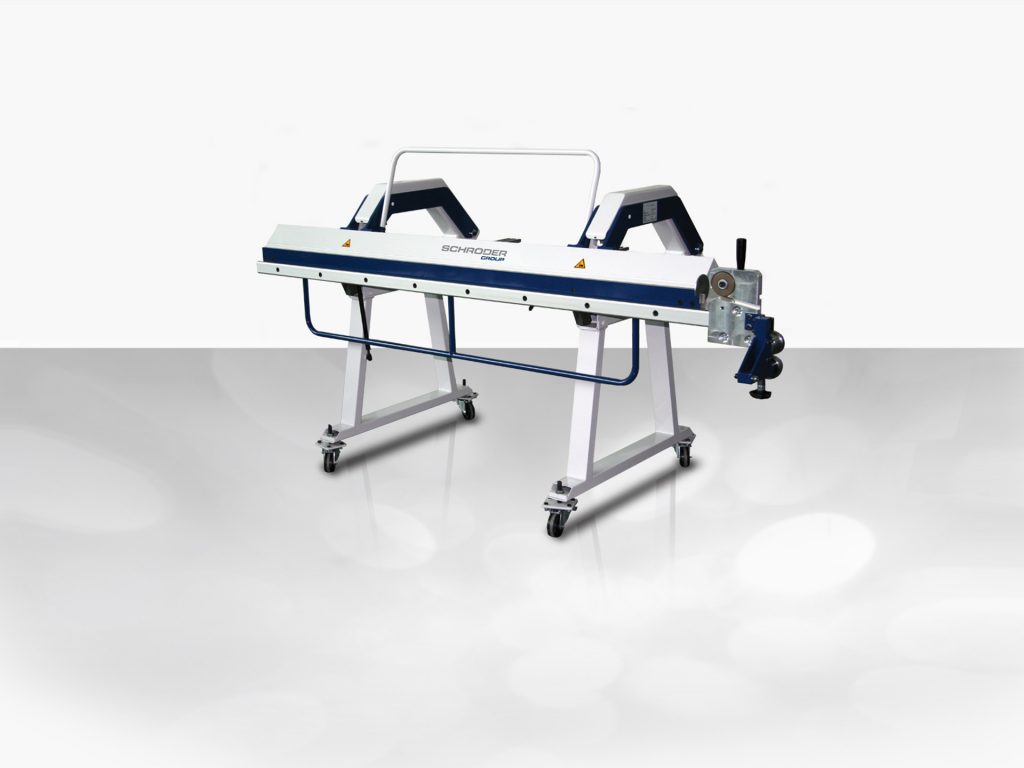

2000×0,8 0,8 2005 55 2000 x 880 x 1100 210

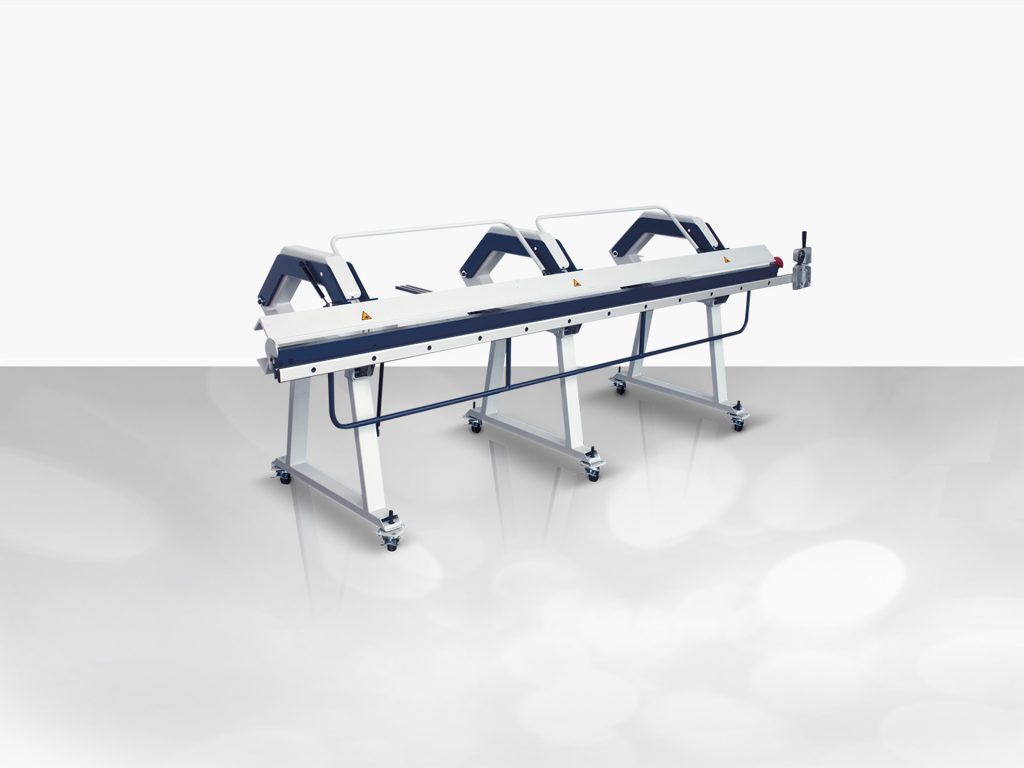

3000×0,8 0,8 3005 55 3000 x 880 x 1100 340

Brochures:
deutsch
english

Tools/Options

Werkzeuge/Optionen

Additional Equipment

  • Gauge, Modular: 2 sheet supports with slot and 2 tipping gauges, 670 mm
  • Cutting- and flattening device combined – The cutting device slices neatly through the clamped sheet
  • Cutting device for max. sheet thickness 0.8 mm St37
  • Guide rail
  • Additional bending angle indicator
