PowerShear
Overview

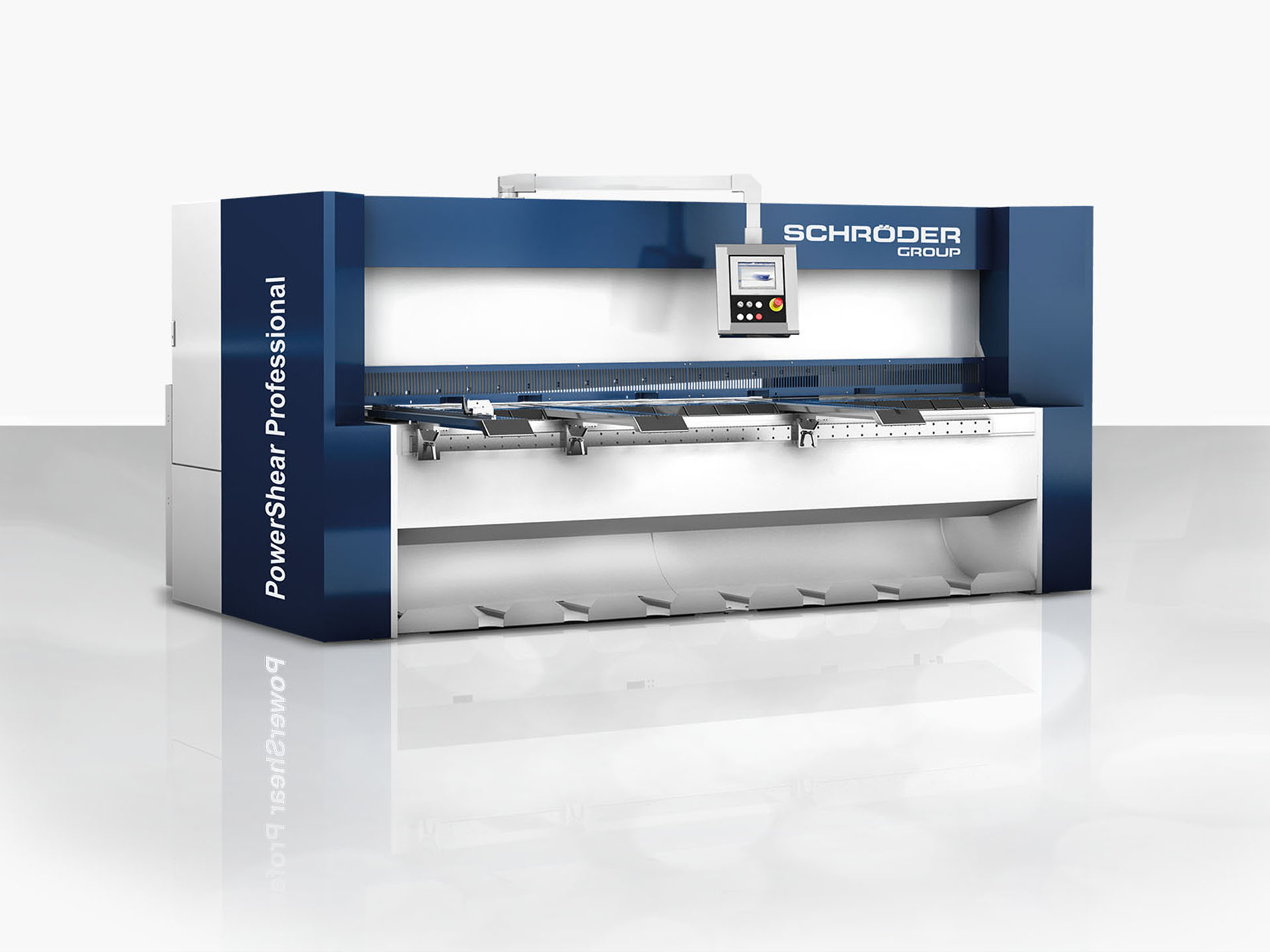

The hydraulic shear PowerShear integrates a huge number of technological innovations. The design of the extreme rigid machine body was engineered with state of the art tools, using the finite elements
method and computer simulations and the drive concept has been completely renewed. Thanks to an energy-efficient drive with a converter-controlled motor and a hydraulic pump, the machine is able to handle the most difficult cutting operations and materials. The shear with a working length of 3000 mm is able to cut up to 6 mm steel sheet.
Details
- 12″Touchscreen control PSC 150 on swivel arm (possibility of saving on CF-card or USB flash drive)
- Blades made for steel up to approx. 700N/mm²
- Energy-efficient drive with converter-controlled hydraulic pump
- Automatic calculation of motorized blade gap adjustment
- Automatic calculation of shear angle adjustment
- Frequency controlled motorized back gauge 10 – 1000 mm
- Sheet support, pneumatically controlled
- LED-cutting edge illumination
- Programmable start- and end position of upper blade
- 1 x lateral angle gauge 1000 mm standard with scale, mounted on left side
- 2x table extensions with T-slot, 1000 mm with scale (3x table extensions from working length 4040 mm)
- Closed sheet support table with exchangeable stainless steel plates incl. ball rollers
- Programming of cutting cycles
- Protection of rear side by safety light barrier
Technical Data
| Type | 30/6 | 40/6 | |
| Sheet thickness (400N/mm²) | [mm] | 6,0 | 6,0 |
| Sheet thickness (700N/mm²) | [mm] | 4,0 | 4,0 |
| Working length | [mm] | 3040 | 4040 |
| Shear angle adjustment | [°] | 0,5 – 1,9 | 0,5 – 1,9 |
| Stroke | [per min.] | 24 – 61 | 20 – 56 |
| Drive power | [kW] | 12 | 12 |
| Weight | [kg] | 6500 | 8400 |
| Machine width | [mm] | 3090 | 3090 |
| Machine length | [mm] | 4000 | 5000 |
| Machine height | [mm] | 1969 | 1969 |
Options
Options
- Professional-Package:
- Scrap and part separator to the front for strips up to max. 200 mm incl. “Return to Sender”
- Free passage of material (swing away back gauge rail)
- Back gauge with linear guide and recirculated ball screws
- Blades
- Spare blade for steel up to 700 N/mm²
- Sheet support table
- Extended angle gauge with scale 1500 mm
- Sheet support arm with T-slot and scale incl. ball rollers 1500 mm
- 2x table extension 1000 mm incl. ball rollers, movable on guide rail
- 3x table extension 1000 mm incl. ball rollers, movable on guide rail
- Sheet support arm with T-slot and scale incl. ball rollers 1500 mm, movable on guide rail
- Tipping gauge for insertion in T-slot
- Others
- Plastic shoes for hold-down device
- Programmable holding-down pressure
- Moveable finger grid protection 1500 mm long with electrical safety switch
- Scrap container front side 1000 mm width movable, 2 fixed and 2 steering castors (Only in combination with Professional-Package)
